THE HARD TAIL WORK HORSE IS BACK
Our dirtjump masterpiece, the Faction II, returns from the shadows. Now available in frame only and complete build options.
SIMPLE AND STOUT
This dirt slayer is the perfect companion for flowing big lines all day, with a sturdy build and a backbone forged from steel. Simple, stout, and clean, just as a DJ ought to be.
We've amplified the simplified with this limited run of complete builds to save you some internet noodling. From the top shelf, just behind that half-drained bottle of Patrone, sits the trusted RockShox Pike DJ fork. At its bow and stern, the Faction II spins a set of 26" Novatec Crisp hoops shod in Maxxis DTH tread to grip the earth or concrete. A fully Evil cockpit is poised above for that skate park or trail rip into the ether, and a single SRAM G2 stopper will pull you back from the edge.
No two landings are identical, and The Faction II comes in three sizes to accommodate your body and style. If you're mostly made of legs, or you prefer a mountain bike feel in your DJ, the large will be a welcome companion. For added BMX character and shorter inseams, one of the smaller sizes may hit the fit. Faction frames offer the angles you want to float a few meters above the earth.
THE DEVIL IS IN THE DETAILS

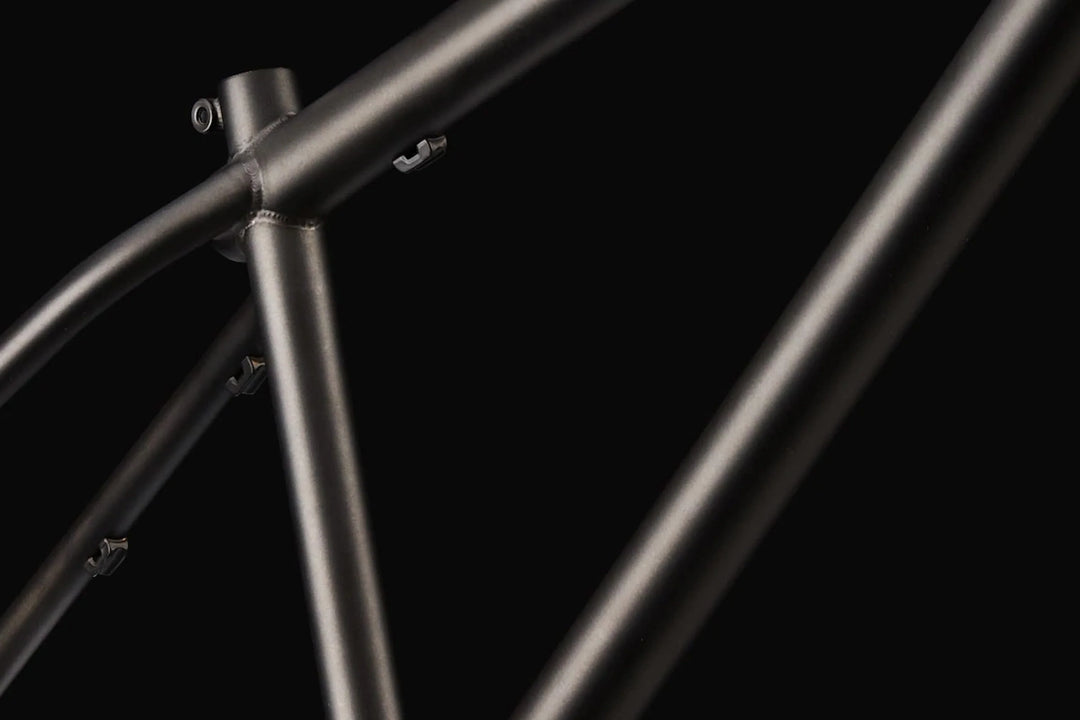

STEEL IS REAL
The Faction 2 frame is is constructed out of Reynolds 520 steel tubing to provide strength and durability.

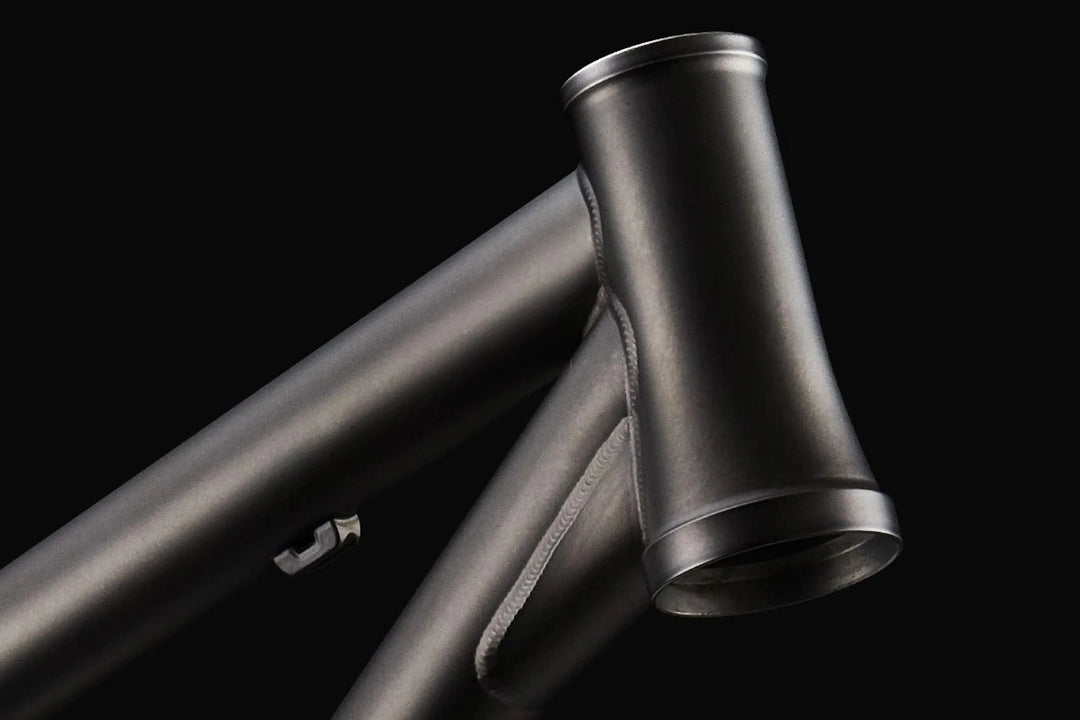

TAPERED HEAD TUBE
A new taller tapered head tube to fit modern dirt jump forks and give you that boost you were looking for..

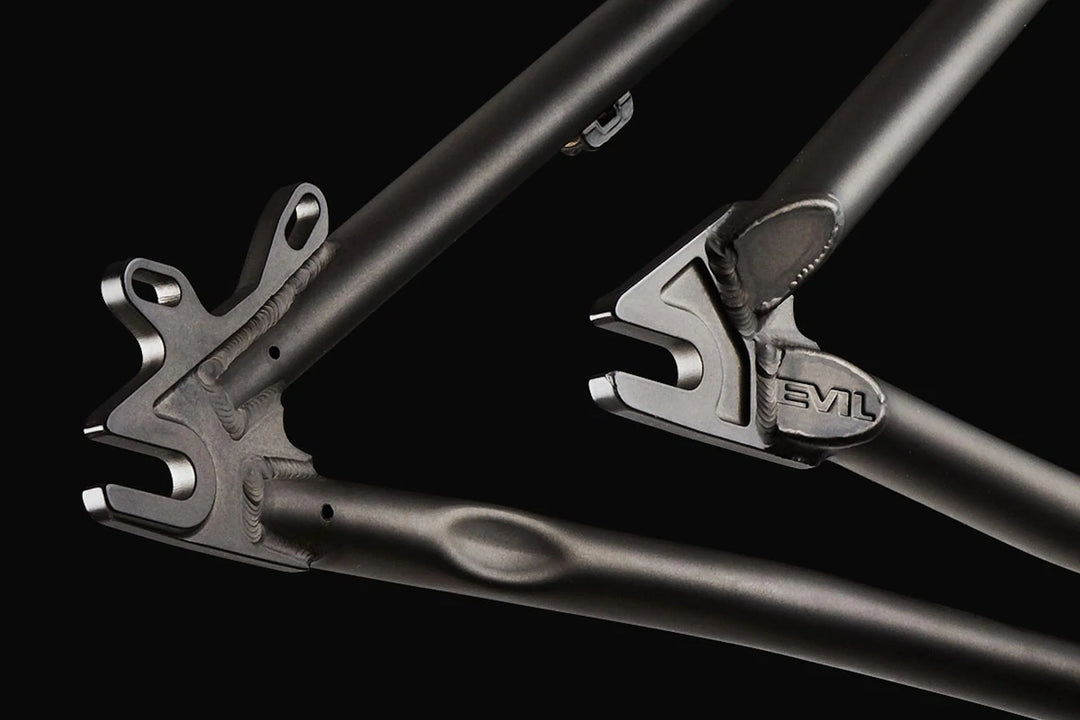

BMX-STYLE HORIZONTAL DROPOUTS
BMX style horizontal dropouts and mid BB bottom bracket.
| GEOMETRY | SMALL | MEDIUM | LARGE |
|---|---|---|---|
| A - Head tube angle | 69.5 | 69.5 | 69.5 |
| B - Seat Tube angle | 71.5 | 71.5 | 71.5 |
| C - Virtual top tube length | 580mm | 22.8" | 590mm | 23.2" | 605mm | 23.8" |
| D - Seat tube length | 320mm | 12.6" | 320mm | 12.6" | 320mm | 12.6" |
| E - Bottom Bracket Height | 323mm | 12.7" | 323mm | 12.7" | 323mm | 12.7" |
| F - Head tube length | 115mm | 4.5" | 115mm | 4.5" | 115mm | 4.5" |
| G - Chain stay length min | 381mm | 15.0" | 381mm | 15.0" | 381mm | 15.0" |
| G - Chain stay length max | 397mm | 15.6" | 397mm | 15.6" | 397mm | 15.6" |
| H - Wheel base min | 1016mm | 40.0" | 1026mm | 40.4" | 1041mm | 41.0" |
| H - Wheel base max | 1032mm | 40.6" | 1042mm | 41.0" | 1057mm | 41.6" |
| J - Axle to Crown | 482mm | 482mm | 482mm |
| K - Offset | 40mm | 40mm | 40mm |
| L - Stack | 521mm | 20.5" | 521mm | 20.5" | 521mm | 20.5" |
| M - Reach | 389mm | 15.3" | 399mm | 15.7" | 414mm | 16.3" |
| N - Sizing | 5'0"-5'7" | 5'7"-6'1" | 6'1"-6'4" |
| COMPONENT | SMALL | MEDIUM | LARGE |
|---|---|---|---|
| Stem length | 35-50mm | 35-50mm | 35-50mm |
| Stem rise | 0-5 | 0-5 | 0-5 |
| Handlebar rise | 35-50mm | 35-50mm | 35-50mm |
| Handlebar width | 710mm-800mm | 710mm-800mm | 710mm-800mm |
| Crank Length | 170mm | 170mm | 170mm |
| Sizing | 5'0"-5'7" | 5'7"-6'1" | 6'1"-6'4" |
| Available Sizes | Small, Medium, Large |
| Frame | Reynolds 520 Steel |
| Fork Axle Crown Length | 482mm |
| Fork offset | 40mm |
| Headtube | Tapered 1 1/8 |
| Headset | FSA NO.42/ACB, Upper 42mm, Lower 52mm |
| Seatpost Diameter | 27.2mm |
| Rear Wheel Diameter | 26 |
| Maximum Rear Tire Size | 26 |
| Bottom Bracket Sheell | Mid BB |
| Chainline | 50mm |
| Chainguide Mount | n/a |
| Max Chainring Size | 28t single ring |
| Rear Wheel Spacing | 135 x 10mm |
| Brake Mount Type | IS Standard |
| Max Rear Rotor Size | 160mm |

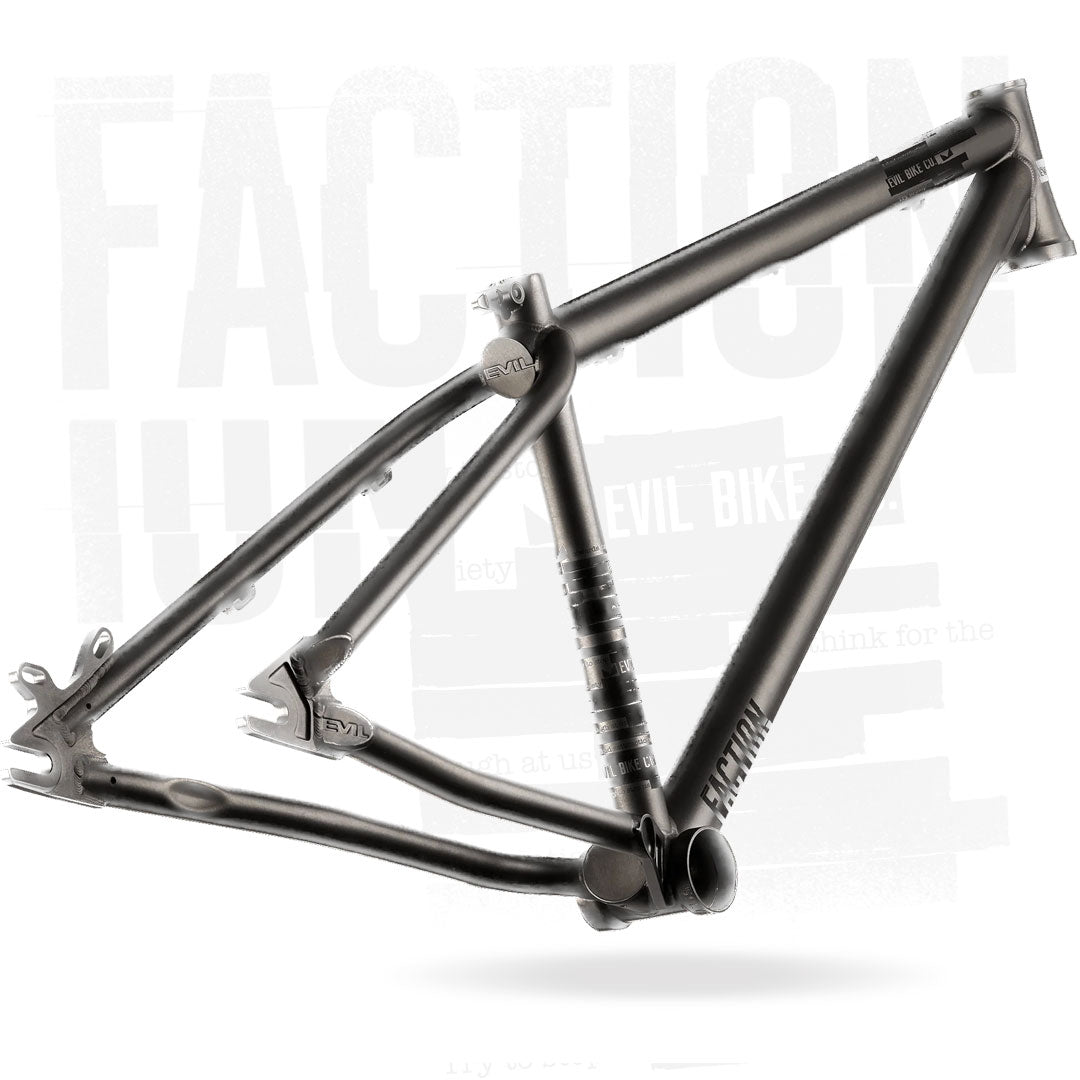

FRAME
WHAT SIZE SPINDLE DOES THE FACTION USE WHEN RUNNING BMX STYLE CRANKS? The Faction works best with 153mm/6″spindles.
WHAT IS THE WARRANTY ON THE FACTION 2? 3 Year limited warranty
WHAT TYPE OF HEADSET DOES THE FACTION 2 USE? The Faction uses a FSA NO.42/ACB, Upper 42mm, Lower 52mm headset.
