Where can I find an exploded view diagram of my bike? You've come to the right place! Here
What is the warranty on my bike? Limited Lifetime Warranty information can be found here: https://www.evil-bikes.com/pages/warranty-policy
How do I adjust my Flip Chips? Remove upper and lower bone link bolts on each side, then remove the 3 flip chip bolts from each side. Flip your Chips 180deg on a horizontal axis. The desired position is noted on the upward facet. The Flip Chip position will be visible when sitting on the bike and should read Low/X-Low depending on model.

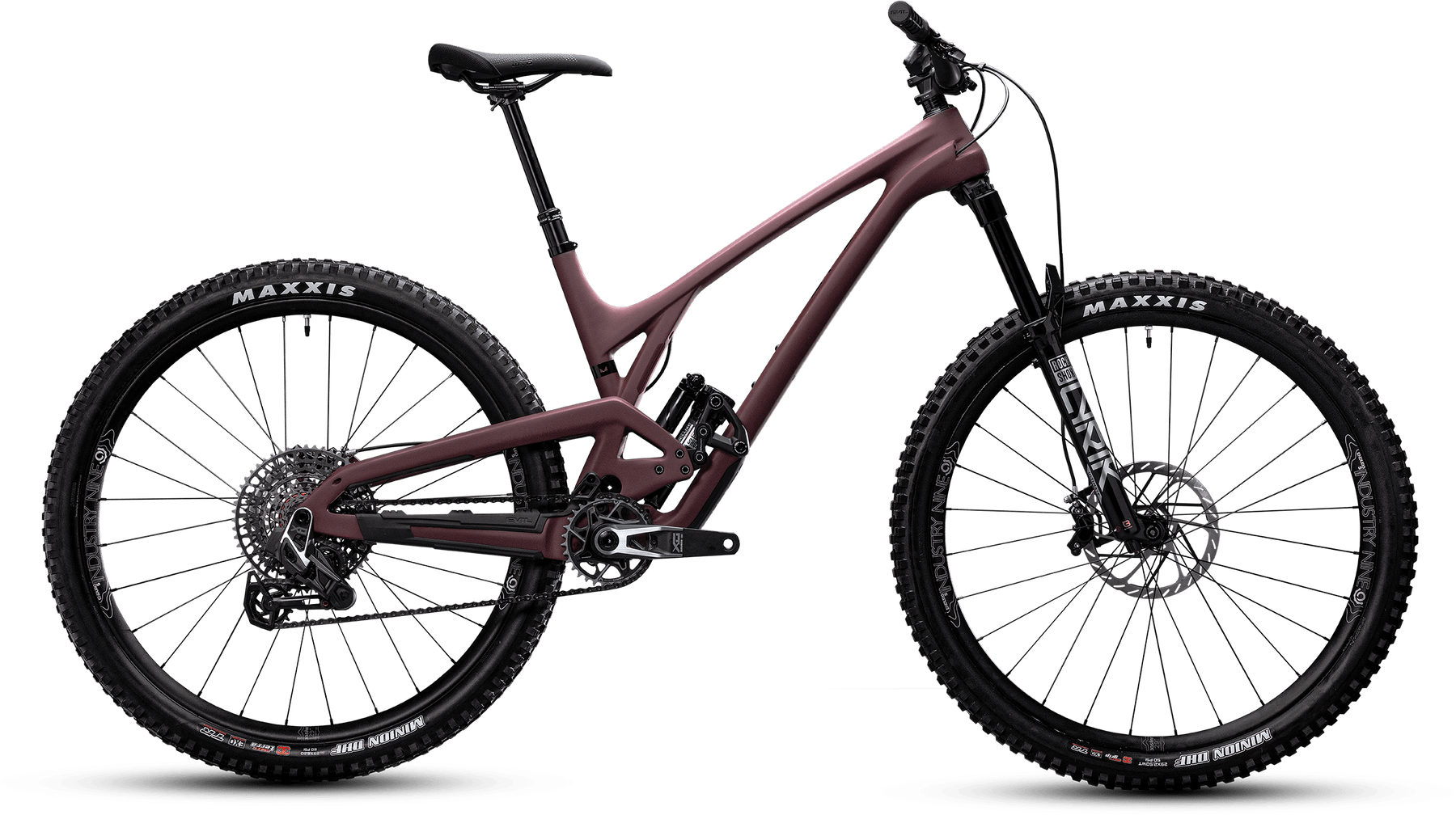

What is the paint code on my bike? Reigning Blood - Pantone 4102C Matte or Absinthe - Pantone 418 C
Which bottom bracket (BB) standard does my bike utilize? It utilizes a threaded BSA 73mm bottom bracket. We recommend pairing your BB & crankset brands, to assure compatibility.
My chainring is slightly off-center in the upper guide.
- If the chainring is too far inboard, try adding one drive side BB spacer.
- If the chainring is too far outboard, try removing one drive side BB spacer and placing that on the non-drive side.
- If neither of these solutions address the issue, your cranks, or chainring may not accommodate the appropriate chainline.
What crankset spacing does my bike require? It requires a SuperBoost crankset w/ 56.5 mm chain line. We spec a 3mm offset Chainring with SuperBoost+ width Cranksets for most cranksets. Boost cranksets cannot be modified to work with this frame.
What are my allowable chainring sizes? Round: 30-36t / Oval: 32-34t
Does my bike accommodate a 2x drivetrain? No. It has an integrated 1x upper chain guide.
Will my bike accept an aftermarket chain guide? Yes. Custom ISCG05 tabs to accommodate aftermarket lower chain guides & bash guards.
What derailleur hanger does my bike use? SRAM UDH (Universal Derailleur Hanger).
What is my bike's rear axle spacing? SuperBoost (12x157mm) rear spacing.
What size wheels & tires does my bike fit? It's designed to accommodate 29" wheels with (up to) 2.6" tires. Front tire clearance is dependent on your fork manufacturer's specifications.
What seat post diameter does my bike utilize? A 30.9mm seatpost.
What seat post clamp diameter does my bike utilize? 34.9mm clamp
What is the longest dropper post I can run?
Please email firstname.lastname@example.org with the following information:
- Your BB center to seat rail center measurement, in the pedaling position.
- Crank length- should be noted on the medial (center-facing) side of your drive-side crank.
- Which dropper post(s) you are looking at.
Our service robots will promptly get back to you with options. If you prefer to do the math yourself you can find the seat tube length on row "D" of the Offering LS geometry chart on our website. Maximum insertion depths are as follows:
What type of brake mount does my bike have? It utilizes a 180mm Post Mount rear. Front is dependent on your fork's make & model. Please see your fork manufacturer's website for exact specifications.
What is my maximum rear brake rotor size? It accepts up to a 203mm rotor.
What type of headset does my bike require? It requires a (Zero Stack) ZS44, ZS62 headset. Few alternatives exist. Consult email@example.com if you have a headset that you are unsure about.
What type of steerer tube does my bike require? It requires a tapered steerer (1 1/8" - 1 1/2").
What is my frame's minimum steerer tube length? It's is designed around a 42mm fork offset.
What fork offset should I run? With zero spacers, assuming a stem stack height of 40mm, your Following LS requires a steerer length of no less than:
Fork manufacturers recommend no more than 30mm of spacers between stem and the upper race. The provided measurements account for 0mm additional stack height (no spacers between stem & dust cap), with a 40mm stack height stem.
How much fork travel can my bike accommodate? The Offering LS is recommended to be paired with a 150mm-160mm travel fork.
How much travel (suspension) does my bike have? The Offering LS has 141mm of rear wheel travel. Recommended fork travel (front) is between 150 and 160mm.
What size shock does my frame utilize? The Offering LS utilizes a Trunnion-mounted upper and requires 8x20mm lower shock mount hardware.
What size shock mount hardware does my bike require? The Offering LS utilizes a Trunnion-mounted upper and requires 8x20mm lower shock mount hardware.
What approved shock options are available?
|Rockshox Superdeluxe Ultimate
||RS SDLX ULT RCT185X55 DB0 LLC 380TS B2, SHAFT END: TRUNNION |BODY END: 8X20
|Fox Float X2
||2021, FLOAT X2, F-S, K, 2pos-Adj, Trunnion, Evil Bikes, Offering, 185, 55, 0.3 Spacer x1CL001, JCR010
||2021, FLOAT DPX2, F-S, K,3pos-Adj, Trunnion, Evol LV, Evil Bikes, MY20 Offering, 18555, 0.2 Spacer, CM, DRL, ReziA F M, Neutral Logo
||Contact Push for custom tune
It is important to note that each EVIL frame requires a specific damper tune. Often times, a standard off-the-shelf tune will not capitalize on the inherent qualities of the DELTA linkage.
Various other options may exist. If you are interested in a damper that is not specified on this list, please consult our friendly customer service team at firstname.lastname@example.org.
